| Category | Gate Valve |
| In stock | Yes |

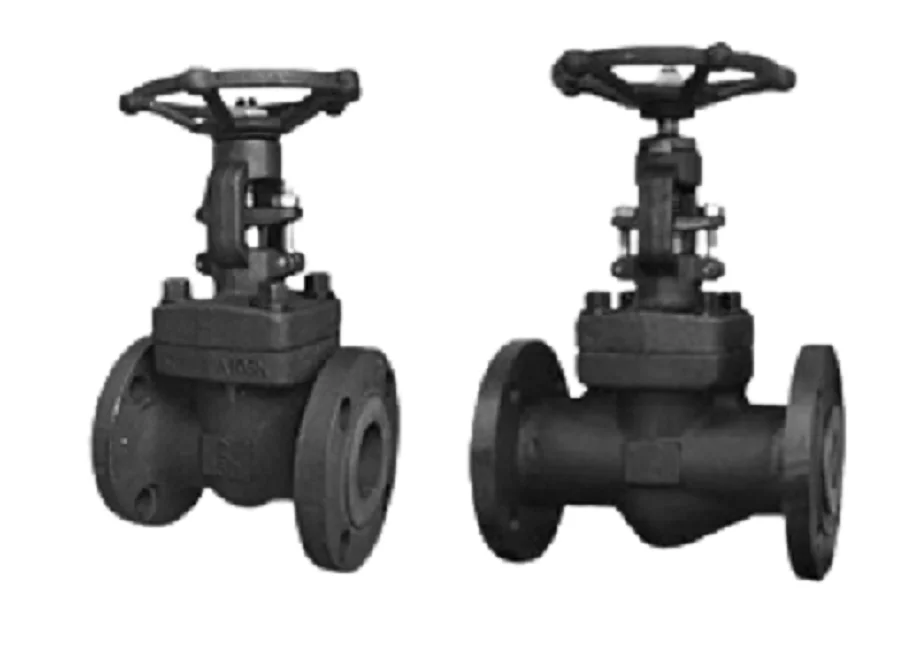

We are a noteworthy company of a comprehensive segment of Forged Steel Gate Valve. These valves are manufactured at our ultra-modern production unit under the vigilance of our adroit professionals. For sternly adhering to the international standards, our offered products are stringently examined by our skilled quality controllers upon various parameters. Apart from this, the offered products are widely used in diverse industries for controlling the flow of liquid & gases.
| Brand | SHREEKAR |
| End Connection | Flanged Soket weld Therade |
| Pressure | highs |
| Pressure Rating | 2500 psi |
| Media | Oil |
| Material Grade | Forged Steel |
| Automation Grade | Manual |
| Length | 79mm to 185 mm |
| Height | 165mm to 359mm |
| Width | 100mm to 200mm |
FEATURES:
REDUCED OR FULL PORT LIFT OR SWING CHECK VALVE SPIRAL WOUND GASKET OF STAINLESS STEEL
BOLTED CAP SOCKET WELD OR THREADED ENDS REPLACEABLE OR INTEGRAL HARD FACED SEAT
BOLTED BONNET SPIRAL WOUND GASKET OF STAINLESS STEEL COMPACT OUTSIDE SCREW & YOKE
REPLACEABLE HARD FACED SEATS
APPLICABLE STANDARDS:
BASIC DESIGN, MS-SP118 & ANSI B16.34, SOCKET-WELD (S.W) ANSI B16.11, THREADED END (S.E) ANSI B1.20.1,
VALVE TEST AND INSPECT : API 598, STANDARD MATERIAL : A105N, LF2, F5, F11, F22, F304, F304L, F316, F316L
BASIC DESIGN, API 602 & ANSI B16.34, FLANGED END, ANSI B16.5, FACE TO FACE ANSI B16.10
VALVE TEST AND INSPECT : API 598, STANDARD MATERIAL : A105N, LF2, F5, F11, F22, F304, F304L, F316, F316L
